Description

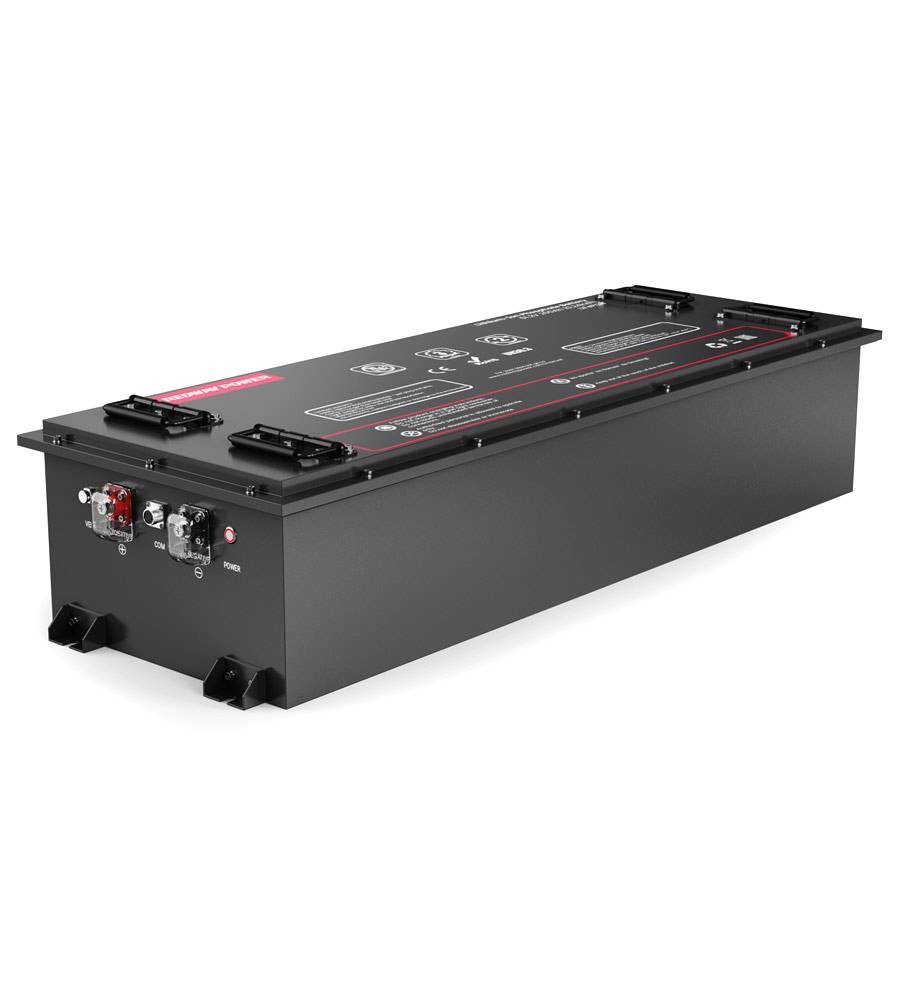

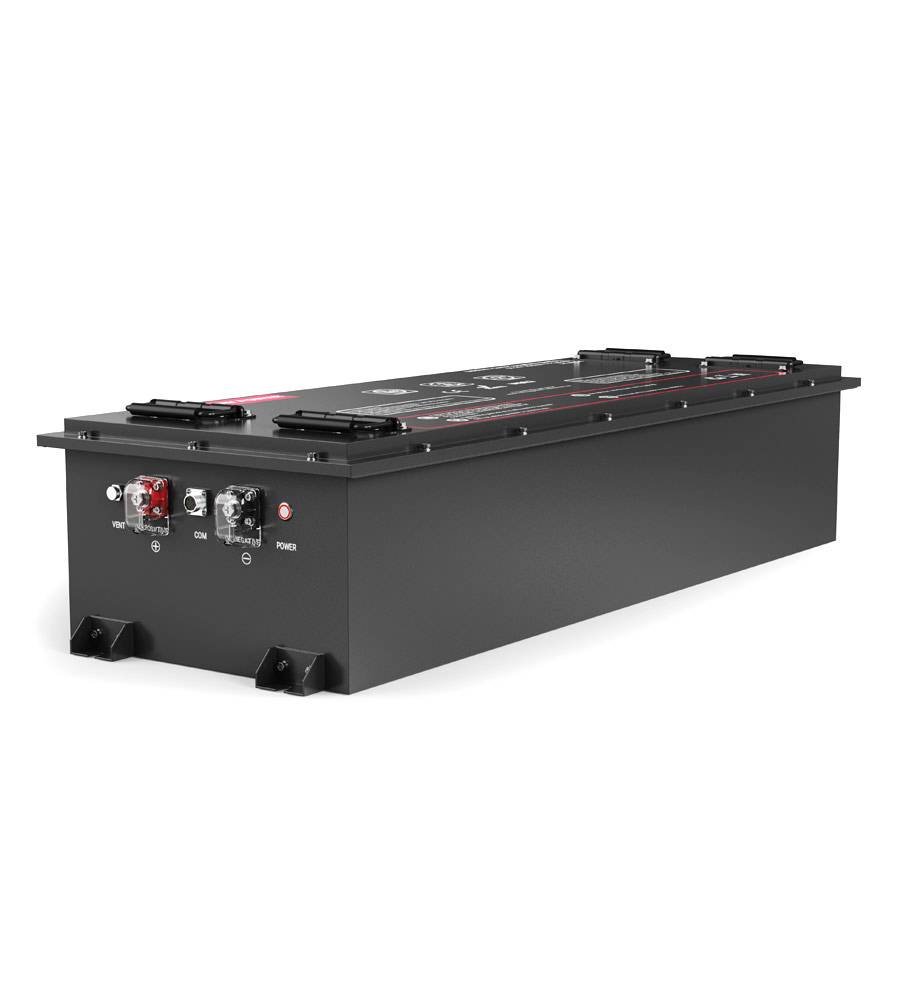

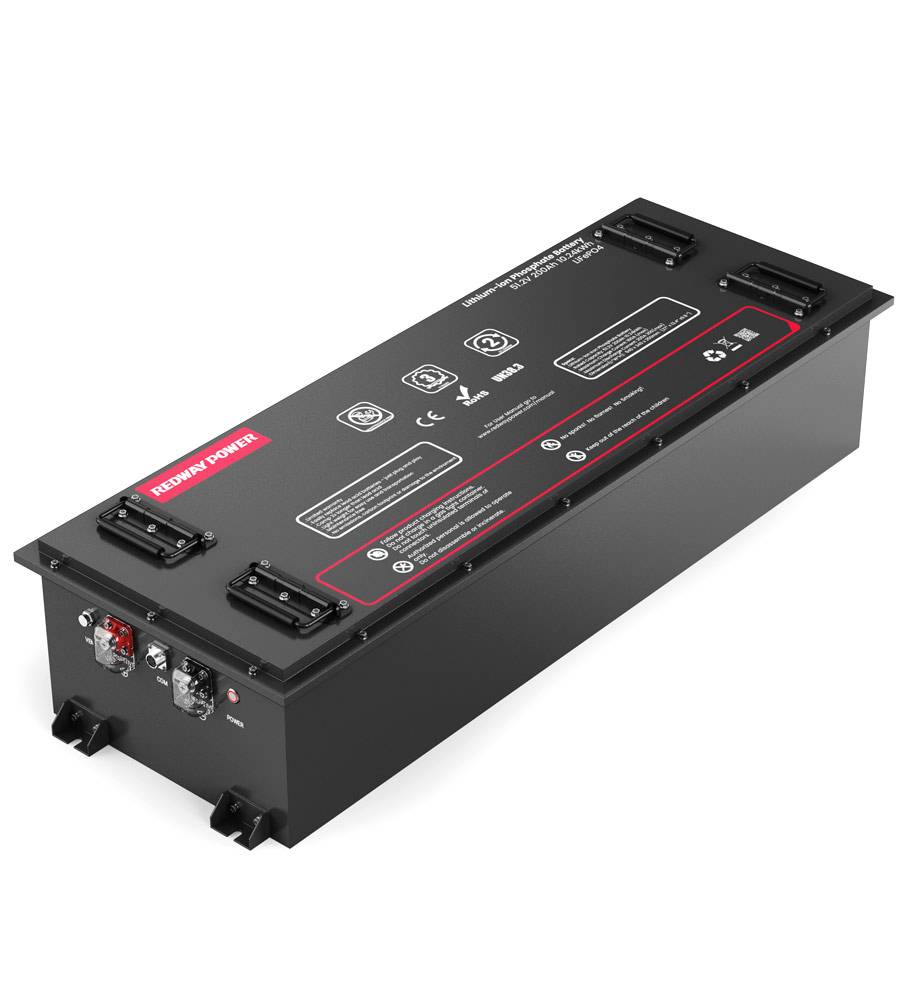

Our 72V 200Ah LiFePO4 Golf Cart Battery offers high – performance power for electric vehicles. With advanced lithium technology, it features long cycle life, high capacity, and robust safety, ideal for OEM and wholesale buyers.
Key Features
- High Energy Capacity: A nominal voltage of 72V and 200Ah capacity yield about 14.4 kWh, extending vehicle range.
- Long Cycle Life: Lasts over 6,000 cycles at 80% DOD, cutting replacement costs compared to lead – acid batteries.
- Robust Safety Features: A smart BMS guards against overcharging, overheating, and short circuits.
- Durable Construction: The IP67 – rated metal casing is dust – tight and water – resistant.
- Versatile Applications: Suitable for golf carts, scooters, and industrial vehicles, with customizable features.
Product Description
The 72V 200Ah LiFePO4 Golf Cart Battery is crafted to power a wide range of electric vehicles. Its 72V nominal voltage and 200Ah capacity provide 14.4 kWh of energy, enabling longer trips without frequent recharges.
The 72V 200Ah LiFePO4 golf cart battery from Redway ESS Power delivers 15.36 kWh of high-density energy, over 6,000 deep cycles, and advanced safety features with smart BMS, ensuring long-lasting, reliable, and efficient power for golf carts and other electric vehicles.
What are the technical specifications of the 72V 200Ah LiFePO4 golf cart battery?
This battery has a nominal voltage of 76.8V and a capacity of 200Ah, providing 15.36 kWh of energy. It supports a continuous charge current of 40A and a maximum charge current of 200A. The continuous discharge current is 200A, with peak discharge up to 315A for 30 seconds. The battery weighs approximately 125 kg and measures 1138 × 410 × 253 mm. It features an IP67-rated metal casing for dust and water resistance and includes a smart BMS with protections against overcharge, over-discharge, overcurrent, and temperature extremes.
How does LiFePO4 chemistry enhance battery performance and lifespan?
LiFePO4 chemistry provides superior thermal stability, high charge/discharge efficiency (~95%), and a long cycle life exceeding 6,000 cycles at 80% depth of discharge. This chemistry allows deep discharges without damage, maintains stable voltage output, and reduces risks of thermal runaway and fire, making it safer and more durable than traditional lead-acid batteries.
What safety features protect the Redway ESS golf cart battery?
The integrated Battery Management System (BMS) continuously monitors cell voltages, current, temperature, and state of charge. It balances cells during charging, prevents overcharge, over-discharge, short circuits, overcurrent, and thermal events. The robust IP67-rated metal enclosure protects against dust and water ingress, ensuring safe operation in various environments.
Which applications benefit most from the 72V 200Ah LiFePO4 battery?
Primarily designed for golf carts, this battery is also suitable for electric tricycles, scooters, low-speed vehicles, and other electric mobility devices requiring high power and extended run times. Its fast charging and high discharge rates support commercial fleets and recreational use.
How does Redway ESS enable smart communication and monitoring?
Redway ESS offers optional features including Bluetooth connectivity, GPS tracking, LCD displays, and 4G communication modules. These enable real-time battery health monitoring, usage tracking, and remote diagnostics, empowering users to optimize performance and maintenance schedules.
What advantages does this battery have over lead-acid alternatives?
Compared to lead-acid batteries, the Redway ESS LiFePO4 battery is lighter, has a significantly longer cycle life, charges faster, requires zero maintenance, and delivers higher energy efficiency. It maintains consistent voltage under load, improving vehicle performance and reducing operational costs.
How can users maximize the lifespan and performance of their 72V 200Ah LiFePO4 battery?
Users should use compatible chargers designed for LiFePO4 chemistry, avoid deep discharges below recommended cut-off voltages, store the battery in cool, dry conditions, and monitor battery status via smart BMS or connected apps. Regular inspection and proper installation also contribute to longevity.
Chart: Comparison of Redway ESS 72V 200Ah LiFePO4 Battery vs Lead-Acid Battery
| Feature | Redway ESS LiFePO4 Battery | Lead-Acid Battery |
|---|---|---|
| Nominal Voltage | 76.8V | 72V |
| Capacity | 200Ah | 200Ah |
| Energy | 15.36 kWh | ~12.8 kWh |
| Weight | ~125 kg | 180-220 kg |
| Cycle Life | >6000 cycles (80% DoD) | 500-1000 cycles |
| Charge Time | 4-5 hours | 8-12 hours |
| Maintenance | None | Regular water topping |
| Safety | Advanced BMS + IP67 casing | Moderate |
Chart: Key Features and Benefits of Redway ESS 72V 200Ah LiFePO4 Golf Cart Battery
| Feature | Benefit |
|---|---|
| High Energy Capacity | Extended driving range and power output |
| Long Cycle Life (>6000) | Reduced replacement frequency and cost |
| Advanced BMS | Enhanced safety and performance monitoring |
| IP67 Rated Metal Shell | Robust protection against dust and water |
| Smart Communication | Real-time monitoring and remote diagnostics |
