Description

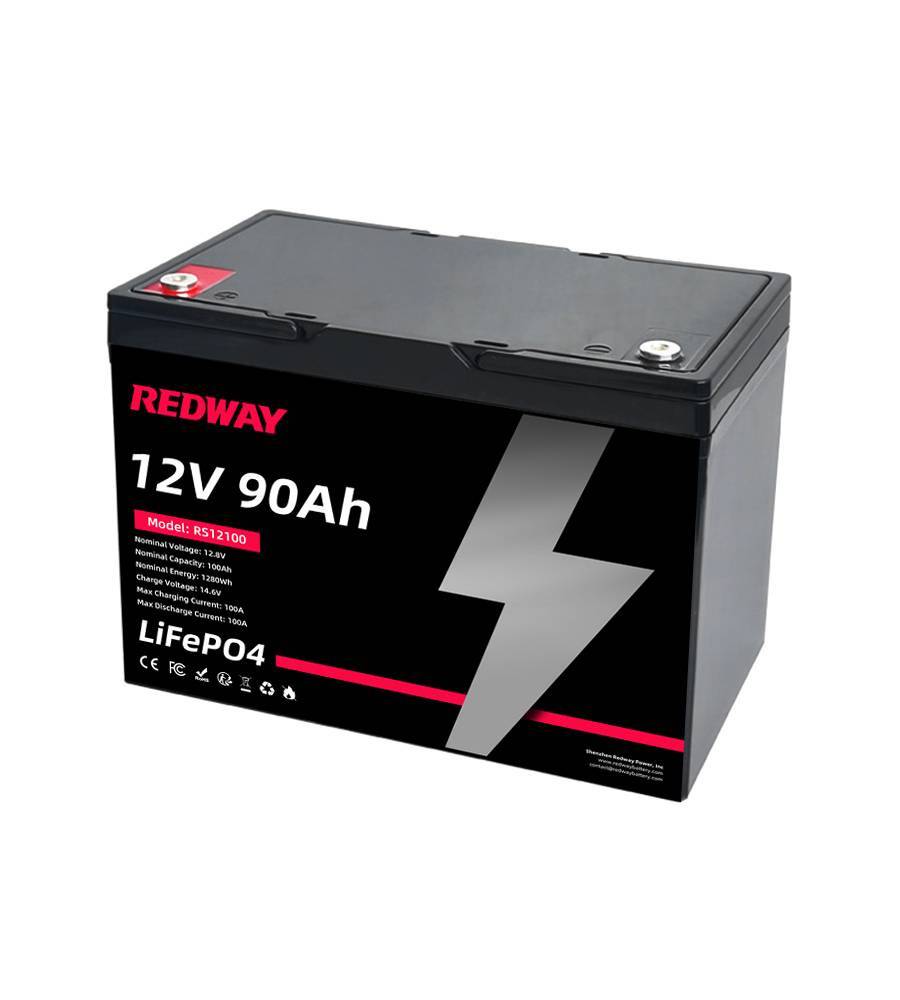

Our 12V 90Ah LiFePO4 Battery is a top – notch energy storage solution. It combines advanced lithium technology with high performance, suitable for diverse applications like solar systems and RVs.
Key Features
This lithium battery from our manufacturer offers several unique features. With high energy density, it has a nominal capacity of 90Ah, delivering 1152Wh of energy. Its extended cycle life can reach over 6000 cycles at 80% DoD. It operates efficiently from – 20¡ãC to 65¡ãC, has a low self – discharge rate of only 2% per month, and provides customizable options for OEM projects.
Product Description
Engineered for various applications such as RVs, marine equipment, and renewable energy systems, this 12V 90Ah LiFePO4 Battery is a great choice for both OEM battery customers and wholesale buyers. It has a nominal voltage of 12.8V and compact dimensions, allowing for easy installation in tight spaces. It supports a max continuous charge and discharge current of 90A. With an IP65 rating, it resists dust and water. The intelligent BMS safeguards against overcharging, over – discharging, and short circuits. It can be stored for long periods with minimal capacity loss. It comes with a 5 – year warranty and meets multiple safety certifications.
A 12V 90Ah LiFePO4 battery from Redway ESS offers reliable, high-capacity power with exceptional durability and safety. Featuring advanced lithium iron phosphate chemistry and a smart Battery Management System (BMS), it delivers over 4000 cycles at 80% depth of discharge, fast charging, and robust protection, making it ideal for solar, RV, marine, and backup power applications.
What are the key features of the 12V 90Ah LiFePO4 battery from Redway ESS?

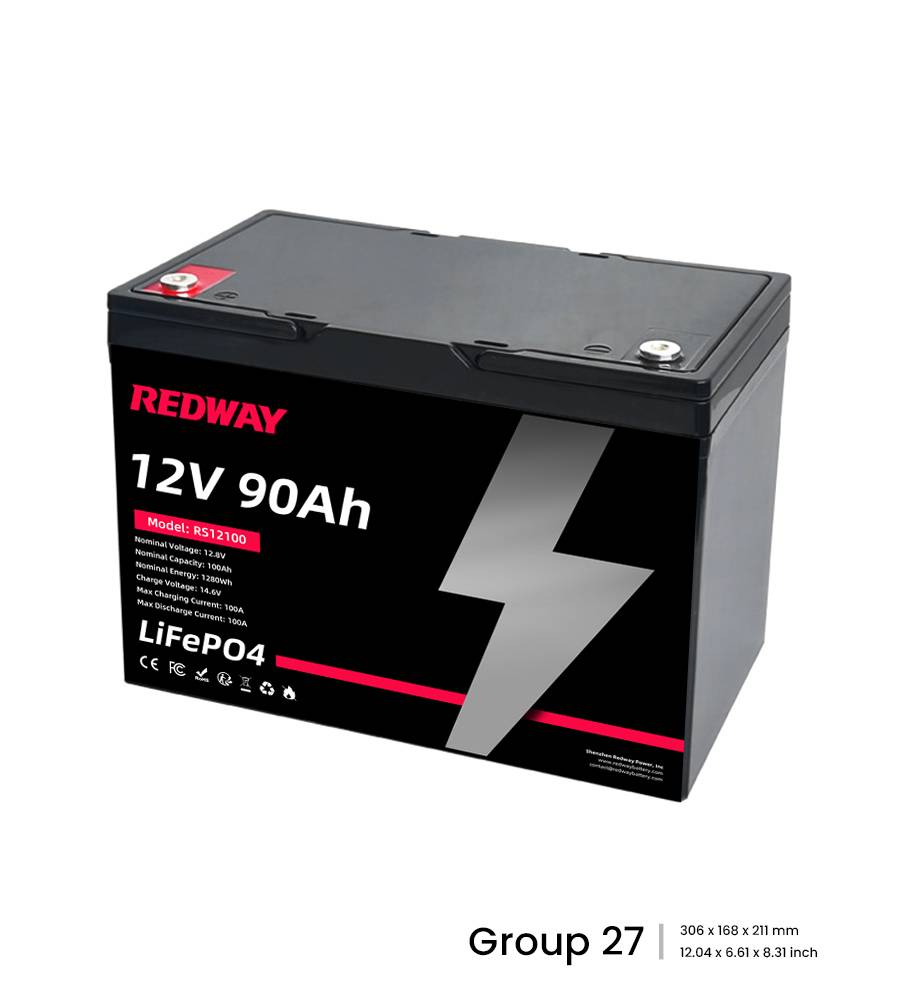

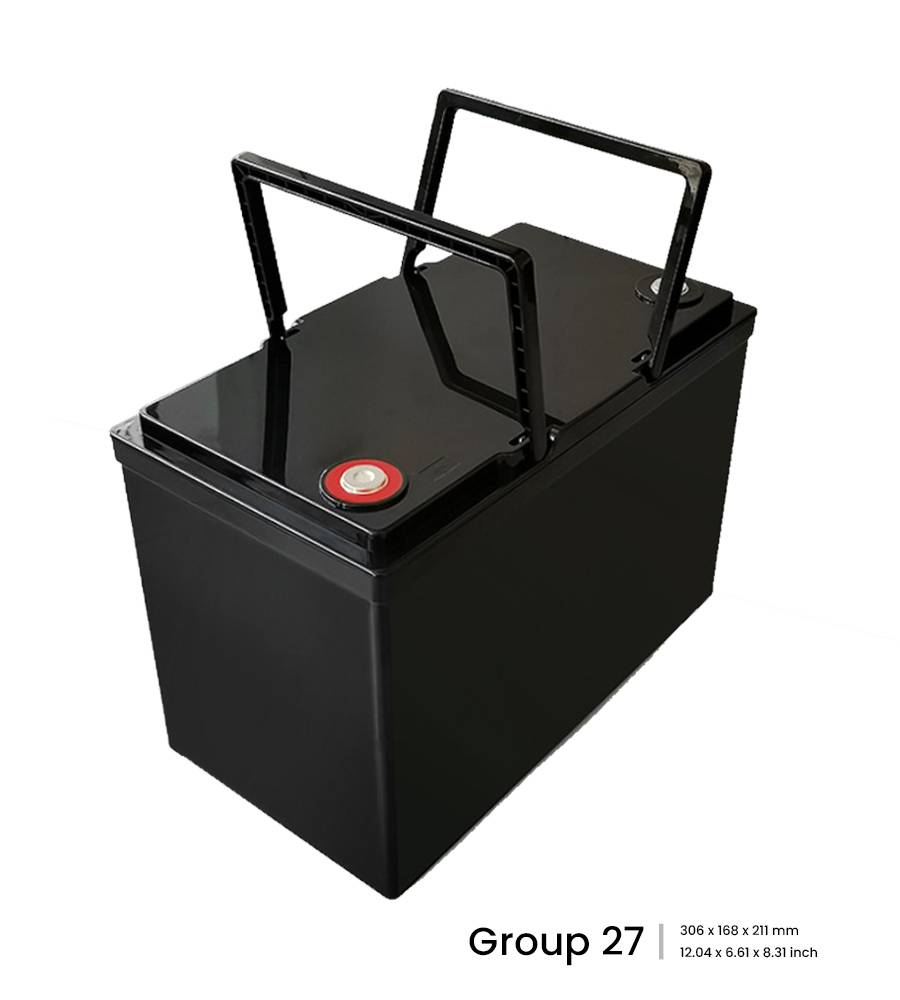

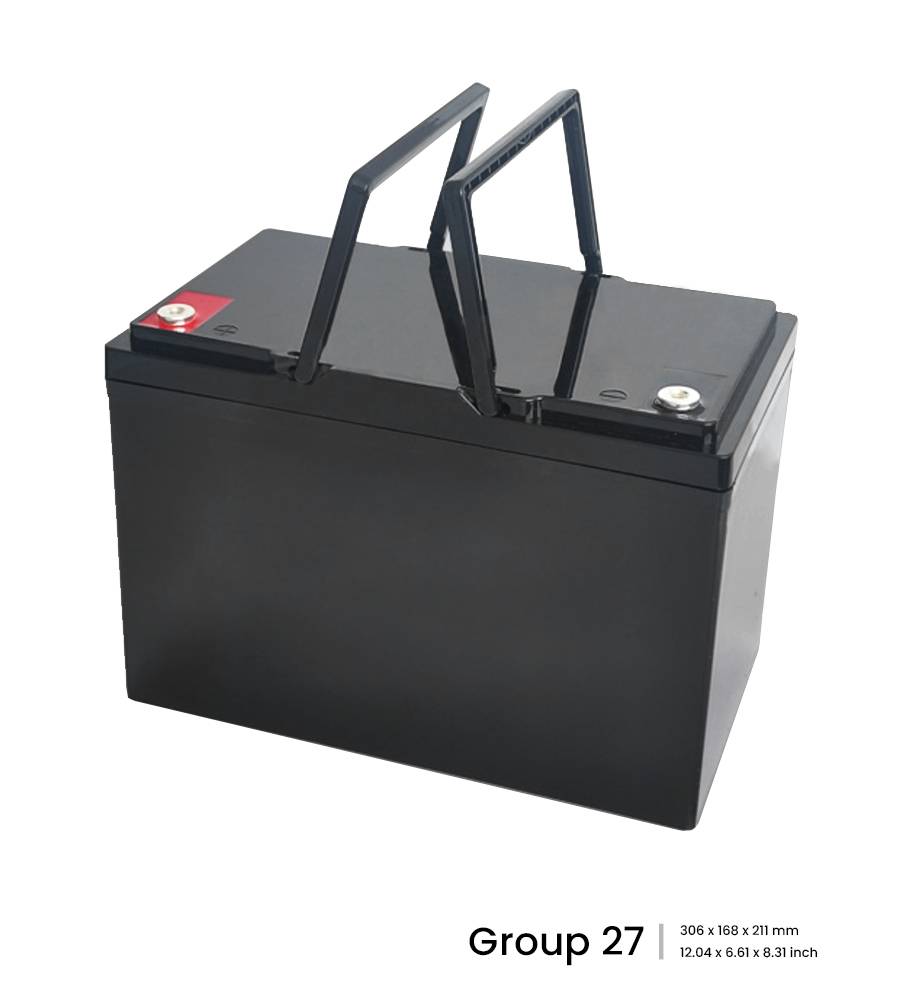

This battery provides a nominal voltage of 12.8V and a capacity of 90Ah, storing approximately 1152Wh of energy. It supports continuous discharge currents up to 90A and peak currents around 180A. The battery is housed in a rugged ABS or metal casing with an IP65 rating for dust and water resistance. It weighs about 8 kg and measures roughly 306 x 168 x 211 mm. The integrated BMS offers protections against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes.
How does the Battery Management System (BMS) ensure safety and longevity?
The BMS continuously monitors cell voltages, current, temperature, and state of charge to prevent unsafe conditions such as overcharging, deep discharge, overheating, and short circuits. It balances cell voltages to maximize usable capacity and extend battery life. Advanced BMS versions provide Bluetooth and CAN bus connectivity for real-time monitoring and diagnostics.
Why is LiFePO4 chemistry ideal for reliable, high-capacity batteries?
LiFePO4 chemistry offers superior thermal stability, long cycle life exceeding 4000 cycles at 80% depth of discharge, and high energy density. It maintains stable voltage output, resists thermal runaway, and has a low self-discharge rate (~2-3% per month). Compared to lead-acid batteries, it is lighter, charges faster, and requires minimal maintenance.
What are the typical applications for a 12V 90Ah LiFePO4 battery?
Ideal for solar energy storage, recreational vehicles (RVs), marine vessels, off-grid power systems, backup power, and other applications requiring reliable, high-capacity, and long-lasting energy storage.
How do charging and discharging specifications impact battery performance?
The battery uses a CC/CV charging profile with a full charge voltage around 14.6V and a discharge cut-off voltage near 10V. It supports a standard charging current of 90A and continuous discharge current of 90A, with peak discharge currents up to 180A. These parameters enable fast charging and high power delivery.
Charging and Discharging Specifications
| Specification | Typical Value |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 90Ah |
| Nominal Energy | 1152Wh |
| Continuous Discharge | 90A |
| Peak Discharge Current | 180A |
| Charge Voltage | ~14.6V |
| Cycle Life | >4000 cycles @ 80% DoD |
| Operating Temperature | Charge: 0°C to 60°C |
| Discharge: -20°C to 60°C | |
| Protection Rating | IP65 |
| Weight | ~8 kg |
How does temperature affect battery life and safety?
The battery performs reliably within recommended temperature ranges. Charging is optimal between 0°C and 60°C, while discharging can occur from -20°C to 60°C. The BMS actively manages temperature to prevent overheating and thermal runaway, ensuring safety and longevity.
How scalable is the 12V 90Ah LiFePO4 battery for larger systems?
Multiple batteries can be connected in series to increase voltage or in parallel to increase capacity. Redway ESS provides expert guidance to ensure proper BMS synchronization and system design for balanced charging and discharging.
What maintenance is required to maximize battery lifespan?
Minimal maintenance includes regular terminal cleaning, adherence to proper charging protocols, avoiding deep discharges, and monitoring battery health via BMS. Redway ESS offers firmware updates and technical support to maintain optimal performance.
How does Redway ESS support customers with their LiFePO4 batteries?
Redway ESS offers customized 12V 90Ah LiFePO4 batteries with advanced BMS, rugged design, and smart connectivity options like Bluetooth and CAN bus. Their expert team ensures seamless integration, reliable operation, and comprehensive after-sales service.
